| Place of Origin: | China |
| Brand Name: | Crystal Base |
| Certification: | CE/CSI/BS/ASTM |
| Model Number: | TSG |
| Minimum Order Quantity: | 100sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in Strong Plywood Crates or Cases with PE,paper or Saftpad interlayer |
| Delivery Time: | 15 days after order confirmed |
| Payment Terms: | T/T ,L/C,DP or western Union |
| Supply Ability: | 3,000 Sqm per Day |
| Product Name: | Tempered Safety Glass | Application: | Glass Door Curtain Wall Of Building |
|---|---|---|---|
| Size Of Panel: | Various | Colours: | Clear, Extra Clear,etc |
| Standard: | CE/CSI/BS/ASTM | Type: | Flat Or Curved Sheet Glass |
| Thickness: | 8-12mm | Transmittance: | More Than 88% |
| High Light: | frameless glass pool fence,tempered glass fence panels |
||

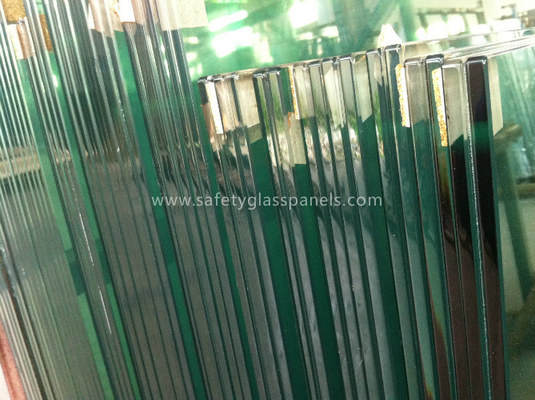

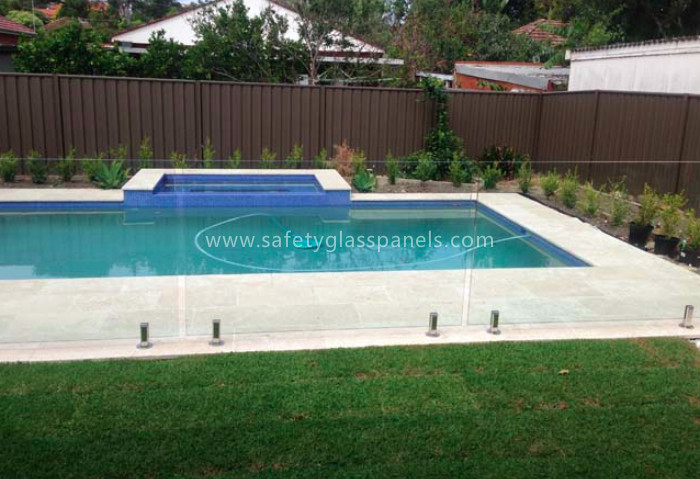

Custom Absolute Glass Pool Fencing , Fully Tempered Glass Swimming Pool Fence
Specification:
Size:Max 4200*2440
Min300*300
Thickness:3-19mm
|
Type:tempered safety glass |
Thickness:3-19mm |
Color:clear |
|
Tempered max size: 4200*2440 |
Min size: 300*300 |
Shape:Curve, Flat |
|
Heat Conductivity::5.7w/m2.k |
Bending strength::180Mpa |
Test broken::8pcs/cm2 |
|
Flatness limits::< 1.5‰ |
Size tolerance::+/- 1.5mm |
Hole tolerance::+/- 1.0mm |
|
Certificate:ISO9001,3c |
||
Application
1. Glass door curtain wall of building
2. Glass panel, glass cabinets,
3. indoor partition,elavator,showcase,door and window of building
4. bathroom, greenhouse, decoration of indoor
5. furniture and household appliance etc.
Feature
Safety: Glass is not easy to be broken when attacked. Broken glass particle is of honeycomb shape with obtuse angles which won't cause severe hurt to human body.
High mechenical-resistant srength:Impact-resistant strength of tempered glass is 3-5 times higher than that
of float glass of the same thickness.
Thermal stability :Thermal stability of tempered glass is 3 times higher than that of float glass of the same thickness. Tempered glass can withstand sudden tenperature shift of 220℃-250℃ while float glass can only withstand shift of 70℃-100℃. When tempered glass suffers rapid cooling of a certain extent, the internal tensile stress and compressive stress on the surface can offset due to opposite stress direction. When tempered glass is heated extremely, compressive stress is generated on the surface of glass which is as double as tensile stress. Therefore, tempered glass also can withstand certain level of rapid heating up.
Good flexibility :Deflection angle of tempered glass is 3-4 times larger than that of float glass of the same thickness. When there is load on tempered glass, its maximum tensile stress does not located on the glass surface as float glass, but on the central point of glass sheet.
